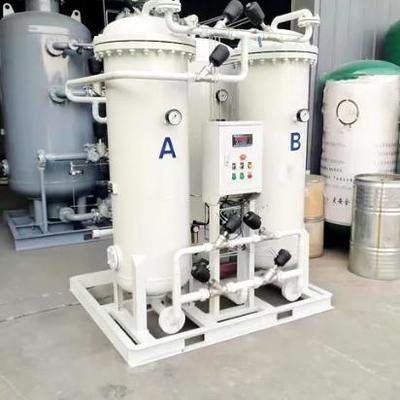

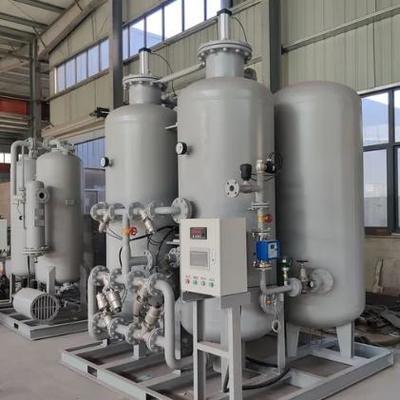

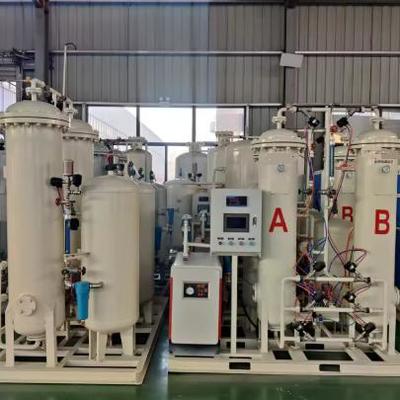

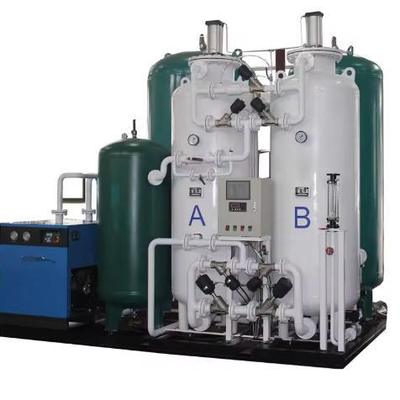

Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity

Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity
Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity

Grote Afbeelding :  Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity

Productdetails:
Plaats van herkomst: China
Merknaam: GNEE
Certificering: SGS
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: ≥1sets
Prijs: According to the product
Verpakking Details: Zee- of landtransport
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact

Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity

beschrijving
Kerncomponenten: zuurstofgenerator Technologie: Drukafschakeling Adsorbtion (PSA)
Stroom: 76-138 kW (asvermogen) Luchtcompressor: Opgenomen
Voeding: 220V/380V, 50Hz/60Hz Lucht bron: Gecomprimeerde lucht
Functie: Skid gemonteerd en vooraf in gebruik genomen Applicatie: Medisch, industrieel, aquacultuur
Zuiverheid: 93±3% Stroomverbruik: 0,5-1,5 kW
Capaciteit: 1-150 Nm3/uur Stikstofproductie: 150Nm3/hr
Markeren:

220V/380V PSA Oxygen Generator

,

Small-Scale PSA Oxygen Generator

,

Community Hospital PSA Oxygen Generator

10L/min 93% Purity Small-Scale PSA Oxygen Generator
The PSA Oxygen Generator is a small-scale oxygen supply device based on pressure swing adsorption technology. It separates oxygen from air through medical-grade molecular sieves, featuring core advantages of compact size, fast startup, stable purity, and simple operation. As a mainstream model of PSA medical oxygen plant, the 10L/min flow rate and 93% purity can accurately match the oxygen supply needs of outpatient clinics, emergency departments, and small wards in community hospitals.
Product Specifications
Capacity (Nm³/h) Purity O₂ Outlet Pressure (Mpa) Inlet/Outlet Connections (mm) Dimensions (mm)
2.2 - 395%±1%0.3 - 0.5DN15/G1 2120010001840
3.5 - 595%±1%0.3 - 0.5DN20/G1 2135012002050
6 - 795%±1%0.3 - 0.5DN25/G1 2150013502350
8 - 1095%±1%0.3 - 0.5DN25/G1 2175015502300
11 - 1395%±1%0.3 - 0.5DN25/G1 2175015502300
14 - 1595%±1%0.3 - 0.5DN40/G1 2185018252350
16 - 1795%±1%0.3 - 0.5DN40/G1 2185018252350
18 - 2095%±1%0.3 - 0.5DN40/G1 2200019002350
21 - 2595%±1%0.3 - 0.5DN40/G1 2210020502400
26 - 3095%±1%0.3 - 0.5DN40/G1 2210020502400
31 - 3595%±1%0.3 - 0.5DN50/G1200013002400
36 - 4295%±1%0.3 - 0.5DN50/G1200013002800
43 - 4695%±1%0.3 - 0.5DN50/G1200013002800
47 - 5295%±1%0.3 - 0.5DN50/G1180017002400
53 - 5695%±1%0.3 - 0.5DN50/G1-1 2210018002600
57 - 6395%±1%0.3 - 0.5DN65/G1-1 2220015002700
398%±1%0.5 - 1.0DN20/G1 2/
598%±1%0.5 - 1.0DN20/G1 2/
1098%±1%0.5 - 1.0DN25/G1 2/
1598%±1%0.5 - 1.0DN25/G1 2/
2098%±1%0.5 - 1.0DN40/G1 2/
2598%±1%0.5 - 1.0DN40/G1 2/
3098%±1%0.5 - 1.0DN50/G1 2/
4098%±1%0.5 - 1.0DN50/G1/
Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity 0 Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity 1 Small-Scale 220V/380V PSA Oxygen Generator for Community Hospital with 93% Purity 2
Benefits for Community Hospitals
Community hospitals have daily oxygen demand concentrated in outpatient emergency care (e.g., myocardial infarction, respiratory failure), chronic disease management (e.g., COPD), and auxiliary oxygen supply for small-scale surgeries. The 10L/min flow rate of the PSA Oxygen Generator can support 3-4 oxygen inhalation terminals simultaneously with 93% medical-grade purity that complies with national standards.
Advantages Over Bottled Oxygen:
  • Eliminates high labor costs from frequent cylinder replacement
  • Removes storage risks associated with high-pressure cylinders
  • Stable operating costs (only 3-5 RMB in electricity fees per day)
  • Compact footprint (0.2㎡) with no need for separate storage
  • Annual savings exceeding 20,000 RMB
Maintenance Guidelines
Daily Operation:
  • Check air intake filter cleanliness (rinse weekly, replace monthly)
  • Replace humidifier bottle water daily and disinfect weekly with alcohol
Monthly Maintenance:
  • Test oxygen purity with portable detector (contact manufacturer if below 85%)
  • Inspect compressor cooling fan every six months for dust removal
Long-Term Storage:
For periods of idleness (e.g., holidays), run equipment for 30 minutes weekly to prevent molecular sieve dampness and failure. Maintain a maintenance log to record operating status and identify abnormalities early.
With its precise 10L/min flow rate and stable 93% purity, the PSA Oxygen Generator has become an efficient oxygen supply choice for community hospitals. Its PSA medical oxygen generator technology meets grassroots medical needs while reducing hospital operational burdens through low-cost operation.
We also produce VPSA Oxygen Generators, storage tanks, heat exchangers and other products. For inquiries about VPSA Oxygen Systems or other products, please email info@gneeheatex.com.

label:

100nm3/h PSA Generatorzuurstof,

20m3/H PSA Generatorzuurstof,

99.5% de adsorptiezuurstof van de drukschommeling
