Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency
Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

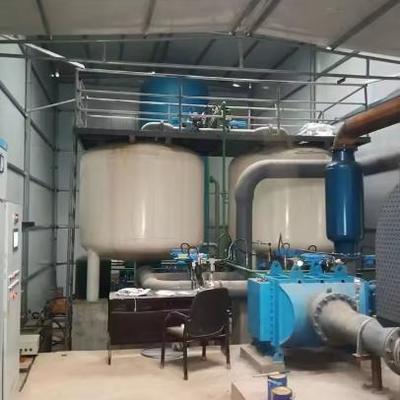

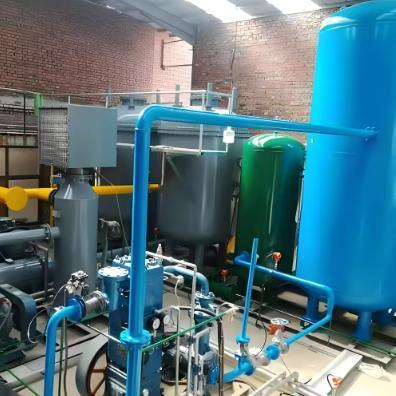

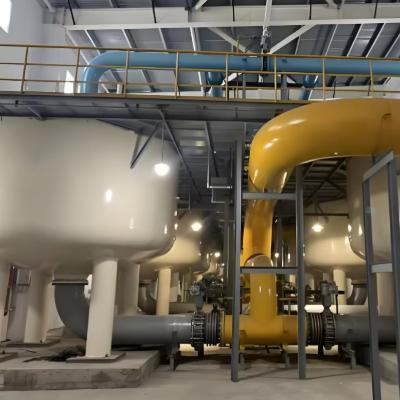

Grote Afbeelding :  Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

Productdetails:
Plaats van herkomst: CHINA
Merknaam: GNEE
Certificering: SGS
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: ≥1sets
Prijs: According to the product
Verpakking Details: houten doosverpakking
Betalingscondities: MoneyGram, Western Union, T/T, D/P, D/A, L/C
Contact

Medical Grade 20 Nm³/h VPSA Oxygen Generator with 10-15Kap Work Pressure and 50Hz/60Hz Frequency

beschrijving
Vloeroppervlak: Klein Productie: 300-10.000 Nm3/u
Innerlijk materiaal: roestvrij staal Frequentie: 50Hz/60Hz
Stroomverbruik: 0,5-1,5 kW/Nm3 Behandeld gebied: ~600m2
Spanning: 220V/380V/50-60Hz Technologie: Vacuümdruk swing adsorptie (VPSA)
Werkdruk: 10-15 kap of als eis van de gebruiker Consumptie: Energiebesparend
Levensduur: +10 jaar Testdruk: 0,8 mpa-1.6mpa
Markeren:

20 Nm³/h VPSA Oxygen Generator

,

10-15Kap Work Pressure Oxygen Generator

,

50Hz/60Hz Frequency Oxygen Production Line

Medical Grade 20 Nm³/h VPSA O₂ Plant Oxygen Production Line Remote Control Oxygen Generator Plant
Process Description
Vacuum Pressure Swing Adsorption oxygen production device operates at normal temperature conditions, utilizing molecular sieve to selectively adsorb nitrogen from air. By reducing adsorption tower pressure to desorb nitrogen from the molecular sieve, the system achieves continuous adsorption-desorption cycle operation, producing oxygen with purity ranging from 80% to 95% or higher.
Product Parameters
Flow Rate (Nm³/h) Purity (%) Size (cm) LWH Cylinders (6m³)/8h Cylinders (10m³)/8h
393 - 96120×120×18043
593 - 96120×120×20074
1093 - 96160×150×215138
2093 - 96180×170×2552616
3093 - 96190×170×2604024
5093 - 96210×200×2756740
10093 - 96550×155×32013380
15093 - 96600×180×350200120
20093 - 96660×200×370267160

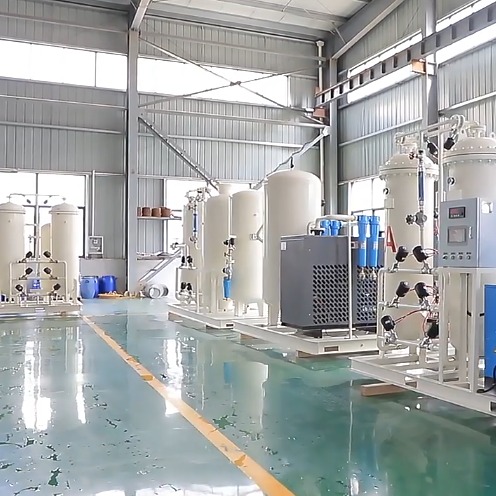

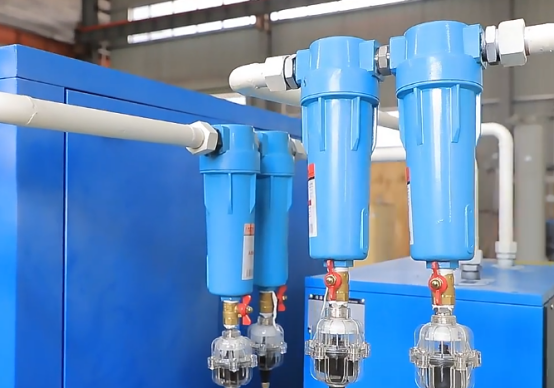

Medical Grade 20Nm³/h O2 Plant Oxygen Production Line Medical Grade 20Nm³/h O2 Plant Oxygen Production Line Medical Grade 20Nm³/h O2 Plant Oxygen Production Line
Operation Process
  1. Filtered air is blown into adsorption towers containing molecular sieve and activated alumina. Nitrogen molecules are absorbed while oxygen molecules and argon atoms pass through to the buffer tank.
  2. When one tower reaches saturation, the inlet valve closes, and oxygen-rich air washes the other tower. A vacuum pump removes nitrogen from the tower.
  3. After vacuuming, oxygen-rich air and buffer tank gas wash the molecular sieve to desorb nitrogen. The tower is then filled with product gas, ready for the next adsorption cycle.
Technical Characteristics
  • Full low pressure positive flow expansion process
  • Full low pressure back flow expansion process
  • Full low pressure process with booster turbo expander
Advantages
  • Simple installation and maintenance thanks to modular design
  • Fully automated system for reliable operation
  • Guaranteed availability of high-purity industrial gases
  • Product available in liquid phase for storage during maintenance
  • Low energy consumption
  • Short delivery time

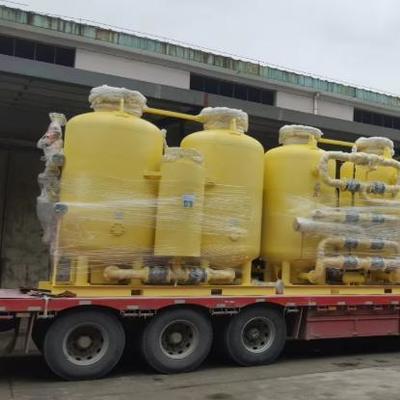

Packaging Details
Size123 (L) × 456 (W) × 789 (D)
Weight1.2 T
Packaging DetailsThe normal package is wooden box (Size: L×W×H). For European exports, the wooden box will be fumigated. If container space is limited, we use PE film or accommodate special customer requests.
In addition to VPSA Oxygen Generators, we also produce PSA Oxygen Generators, storage tanks, heat exchangers and other products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com.

label:

VPSA zuurstofinstallatie 300 Nm3/uur,

industriële VPSA zuurstofgenerator,

PLC-gestuurde zuurstofinstallatie
