VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure

VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure
VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure

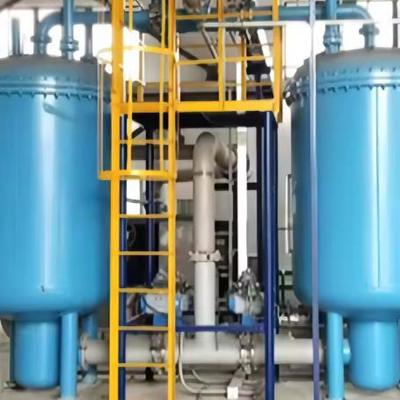

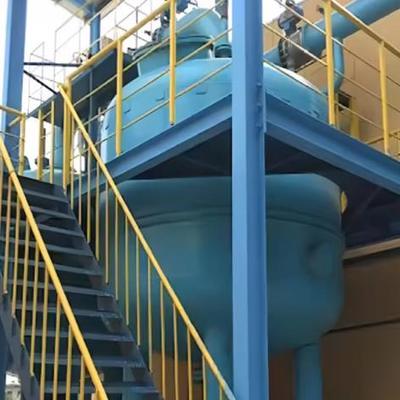

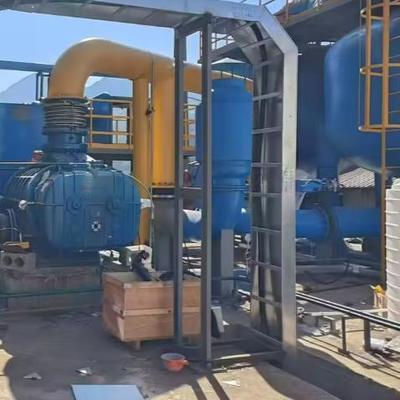

Grote Afbeelding :  VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure

Productdetails:
Plaats van herkomst: CHINA
Merknaam: GNEE
Certificering: SGS
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: ≥1sets
Verpakking Details: houten doosverpakking
Betalingscondities: MoneyGram, Western Union, T/T, D/P, D/A, L/C
Levering vermogen: 25 Elke maand
Contact

VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure

beschrijving
Sleutelwoorden: VPSA-Zuurstofgenerator Lengte: 6058 mm
Zuurstofzuiverheid: 90-95% Technologie: Vacuümdruk swing adsorptie (VPSA)
Geluidsniveau: ≤75 dB (a) Temperatuur: Omringend
Werking: Volledig automatisch Gewicht: Hang van capaciteit af
Stikstofproductie: 490Nm3/hr Frequentie: 50Hz/60Hz
Zuurstofuitlaatdruk: 0,2-0,4 MPa Werkdruk: 0,1-1,0 MPa
Machinetestrapport: Mits
Markeren:

90-95% Oxygen Purity VPSA Oxygen Generator

,

490Nm3/hr Nitrogen Output Oxygen Production Equipment

,

0.2-0.4 MPa Oxygen Outlet Pressure Nitrogen Oxygen Generator

10nm3 20nm3 50nm3 80nm3 VPSA Cryogenic Nitrogen Oxygen Generator
Product Overview
The VPSA (Vacuum Pressure Swing Adsorption) Oxygen Generator efficiently separates nitrogen and moisture from air to produce oxygen with purity levels ranging from 80% to 95%. This equipment is essential for various industrial applications including steel production, glass manufacturing, wastewater treatment, cement production, ceramics, and non-ferrous smelting.
Key Features
  • Energy-saving design with 8-12% lower power consumption compared to traditional technologies
  • Low noise operation with intelligent control system
  • Reduces overall oxygen production costs
  • Environmentally friendly operation
Technical Specifications
Brand Name GNEE
Usage Oxygen
Production Rate 3Nm3/h - 200Nm3/h
Voltage 220V/380V (according to your country's voltage)
Weight 1400KG
Dimension Customized according to productivity
Warranty 1 Year
Core Components Pressure vessel
Purity 25%~95%
Pressure 0.1-16MPa
Oxygen dew point temperature ≤-43℃
Performance Parameters
Capacity O₂ Purity Load Adjustment O₂ Outlet Pressure
≥200Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥300Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥400Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥500Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥600Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥700Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥800Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥1000Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥1200Nm³/h ≥90% 50%~100% 10~40Kpa.G
≥1500Nm³/h ≥90% 50%~100% 10~40Kpa.G
VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure 0 VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure 1 VPSA Oxygen Generator with 90-95% Oxygen Purity 490Nm3/hr Nitrogen Output and 0.2-0.4 MPa Oxygen Outlet Pressure 2
Working Principle
The VPSA Oxygen Generator operates through molecular sieve technology that selectively adsorbs nitrogen from air at ambient temperature, producing oxygen with purity levels between 90-94%. The system achieves cyclical operation through alternating adsorption and desorption phases.
Filtered air enters adsorption towers containing molecular sieves and activated alumina. As air flows through the molecular sieve bed, nitrogen molecules are adsorbed while oxygen passes through to a buffer tank. The oxygen is then pressurized for storage and use.
When molecular sieves reach nitrogen saturation, the system switches to desorption mode using vacuum pressure to remove nitrogen, followed by purging with oxygen-rich gas. This continuous cycle ensures uninterrupted oxygen production.
Packaging Information
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Packaging Details Standard wooden box packaging (Size: L*W*H). For European exports, fumigated wooden boxes are provided. Alternative packaging options available for special requirements.
Additional Products: We also manufacture PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com.
