Productdetails:
|
| Voordeel: | lange de diensttijd | Geometrisch volume: | 10m3/20m3 |
|---|---|---|---|
| Type: | Verticaal en horizontaal | Maximaal werken: | 1.6MPa |
| Materiaal: | Roestvrij staal | Lange: | 6058mm |
| Maximale werkdruk: | 2.16mpa | Belangrijkste verkoopargumenten: | Lange levensduur |
| Materiaal buitenste vat: | Koolstofstaal | Materiaal van de binnenzilinder: | 304/316 |

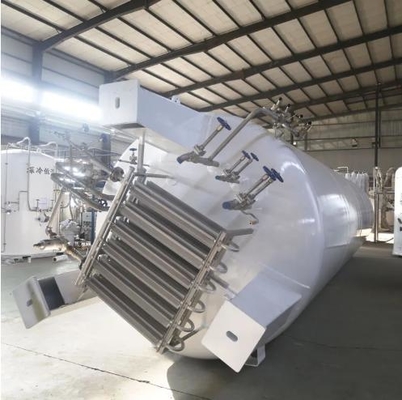

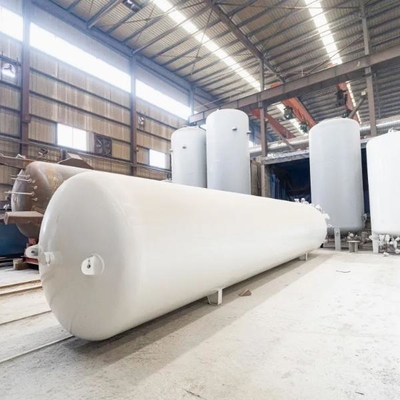

10m3 20m3 CO2 LNG Cryogenic Storage Tank
Description
The space between the inner and outer vessel, containing several inches of insulating material maintained in a vacuum.
The vacuum and insulating material help to reduce heat transfer and thereby reduce the boil-off of the liquid oxygen, liquid nitrogen or liquid argon stored within the vessel.
Liquefied gases are used in a wide range of applications, including metal processing, medical technology, electronics, water treatment, energy generation and the food industry.
Today, more and more of these industrial gases are being delivered to customers in liquid form at cryogenic temperatures, enabling them to be stored on site for later use. We offer cryogenic tanks for the following liquefied gases:
lLiquid nitrogen (LIN)
lLiquid argon (LAR)
lLiquid oxygen (LOX)
lLiquid carbon dioxide (LCO2)
lLiquid natural gas (LNG)
lLiquid nitrous oxide (N2O)
LNG Cryogenic Storage Tank Parameters
|
Effect Volume(m3) |
Working Pressure(Mpa) |
Evaporation(%) |
Empty Weight(kg) |
Dimension(mm) |
||
|
LO2 |
LN2 |
LAR |
||||
|
2 |
0.8 |
≤0.67 |
≤1.0 |
≤0.7 |
2530 |
Φ1912X3295 |
|
3 |
0.8 |
≤0.6 |
≤0.9 |
≤0.63 |
2972 |
Φ1912X3948 |
|
5 |
0.8 |
≤0.435 |
≤0.65 |
≤0.46 |
3896 |
Φ1912X5254 |
|
5 |
1.6 |
≤0.435 |
≤0.65 |
≤0.38 |
3997 |
Φ1912X5254 |
|
10 |
0.8 |
≤0.36 |
≤0.55 |
≤0.38 |
6068 |
Φ2216X6460 |
|
10 |
1.6 |
≤0.36 |
≤0.55 |
≤0.38 |
6120 |
Φ2216X6460 |
|
15 |
0.8 |
≤0.35 |
≤0.53 |
≤0.37 |
7880 |
Φ2316X8048 |
|
15 |
1.6 |
≤0.35 |
≤0.55 |
≤0.37 |
7900 |
Φ2316X8048 |
|
20 |
0.8 |
≤0.33 |
≤0.5 |
≤0.35 |
9014 |
Φ2616X8061 |
|
20 |
1.6 |
≤0.33 |
≤0.5 |
≤0.35 |
9730 |
Φ2616X8061 |
|
30 |
0.8 |
≤0.29 |
≤0.44 |
≤0.31 |
11910 |
Φ2616X10993 |
|
30 |
1.6 |
≤0.29 |
≤0.44 |
≤0.31 |
12880 |
Φ2616X10993 |
There‘s a fair bit of legislation that governs the industry’s use of LNG cryogenic tanks. They have to be operated and maintained in a manner that’s in compliance of these regulations.
Only designated competent persons are qualified to maintain and manage the LNG cryogenic tanks. The industry abides by these regulations. As such, static tanks should put through inspections at regular intervals. Routine maintenance and periodic formal examination should also carried out.
The maintenance and inspection regime has to be created so that it can be ensured that the tank is in a position to allow safe operation at all periods of time between the formal examinations.
Periodic inspection and testing is also required for transportable tanks and this can only be performed by an inspection body. These inspections and examinations have to be documented and the records have to be retained for the life of the tank.
There‘s a duty of care that the industry needs to abide by when they own use LNG cryogenic tanks. Responsible gas suppliers will only fill an LNG cryogenic tank once they are satisfied that it is safe to do so.
LNG power generation
Import terminal storage and processing infrastructure
Satellite LNG plants for gas distribution at off-grid locations
Peaking plants
Backup power supplies
Virtual pipeline solutions
Mobile units
